Concentration

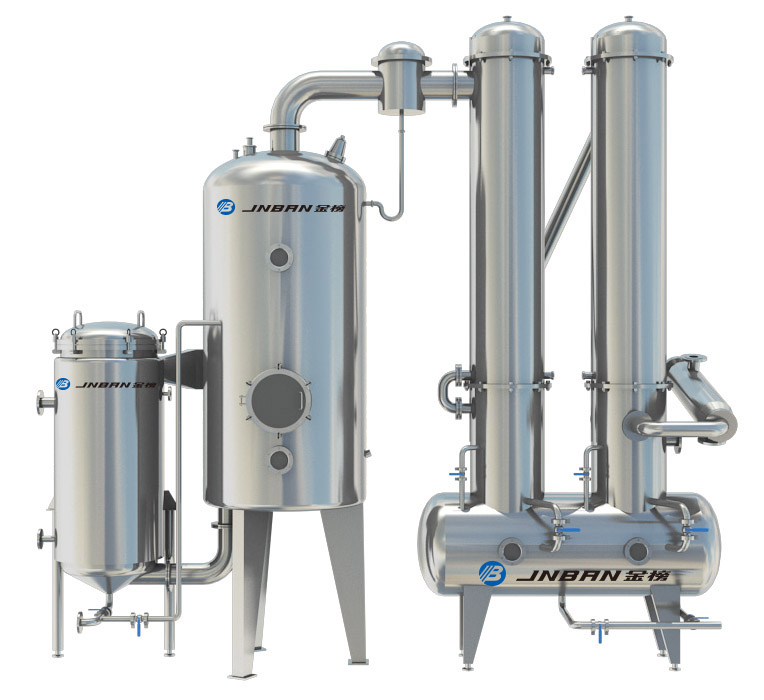

SJN Single-effect Concentrator

Features of new model concentrating equipment

1.The diversion trench circulative evaporation technology is adopted:Compared with traditional structure,the evaporation efficiency is increased by about 1 5%.Meanwhile,it can effectively prevent bubbles from being produced during material evaporation and can avoid foam entrainment.
2.The flat bottom evaporation technology is adopted:Compared with traditional conical bottom evaporation technology,the equipment structure is more compact and the operation height is greatly reduced so that the dual-effect 3000 concentrator can easiIy complete observation and operation without the need of using the platform,but the traditional 1000 concentrator can be operated only after the platform is used.
3.The plate type heat exchanger condensing and cooling technology is adopted:Compared with the original tubular structure,it can achieve a solvent recovery rate of 95% and an increased vacuum diameter.The concentrating temperature does not increased vacuum diameter.The concentrating temperature does not increase and the equipment has compact structure.

PRODUCTS DETAIL



Technical parameter

Specification

SJN-500

SJN-1000

SJN-2000

SJN-3000

Evaporation ( Kg/h )

500

1000

2000

3000

Steam consumption ( Kg/h )

≤250

≤500

≤100

≤1500

Outline dimension
(Length * width * height) ( m )

4x1.5x33

5x1.6x3.5

6x1.6x37

6.5x1.7x43

Recycling water consumption ( L/h )

6

12

15

18

Evaporation

temperature

One-effect

80-90

Mpa

Vacuum degree

One-effect

0.02-0.04

Double-effect

55-70

Double-effect

0.05-0.06

Steam pressure (MPa)

<0.25

Relative density

1.2-13

Container class

First type (Single-effect heater)
