siraitia grosvenorii extraction processing line

A kind of the method of the extraction without agriculture residual momordica grosvenori and water-soluble dietary fiber, comprising the following steps: (1) Siraitia grosvenorii is cleaned, squeezed the juice, pomace elution obtains extracting solution;(2) it boils, cooling, centrifugation ,extraction obtains extract;(3) aluminium oxide and activated carbon chromatography column for passing through tandem, collect efflux;(4) ultrafiltration membrance filter collects trapped fluid and permeate respectively;(5) nanofiltration, concentration: by ultrafiltration permeate nanofiltration membrane, trapped fluid and permeate are collected respectively...

siraitia grosvenorii extraction processing line


JNBAN Extract the residual momordica grosvenori of agriculture With the method for water-soluble dietary fiber, comprising the following steps:

(1) juicing is extracted: Siraitia grosvenorii fresh fruit being cleaned, is squeezed the juice at room temperature, pomace is eluted with water again, merges fruit juice and elution Liquid obtains extracting solution;

(2) it boils: extracting solution obtained by step (1) being boiled, is cooled to room temperature, be centrifuged, obtain centrifugate;

(3) it chromatographs: centrifugate obtained by step (2) is passed through to the alumina chromatographic column and activated carbon chromatography column of tandem, Collect efflux;

(4) ultrafiltration: by efflux ultrafiltration membrance filter obtained by step (3), ultra-filter retentate is collected respectively and ultrafiltration penetrates Liquid;

(5) nanofiltration, concentration: by ultrafiltration permeate nanofiltration membrane obtained by step (4), collect respectively nanofiltration retentate fluid and Nanofiltration retentate fluid is concentrated under reduced pressure nanofiltration permeate liquid, dry, obtains the residual mogroside of no agriculture;By gained nanofiltration permeate liquid and step Suddenly ultra-filter retentate obtained by (4) merges, and is concentrated under reduced pressure, dry, obtains the residual Siraitia grosvenorii water-soluble dietary fiber of no agriculture.

in step (1), in the Siraitia grosvenorii fresh fruit, the mass content of momordica glycoside V is 0.3~0.8%, water The mass content of soluble dietary fiber is 5~10%. The water-soluble dietary fiber includes the pectin of macromolecular, polydextrose etc., And oligofructose, oligoisomaltose, oligomeric lactose, xylo-oligosaccharide of small molecule etc..

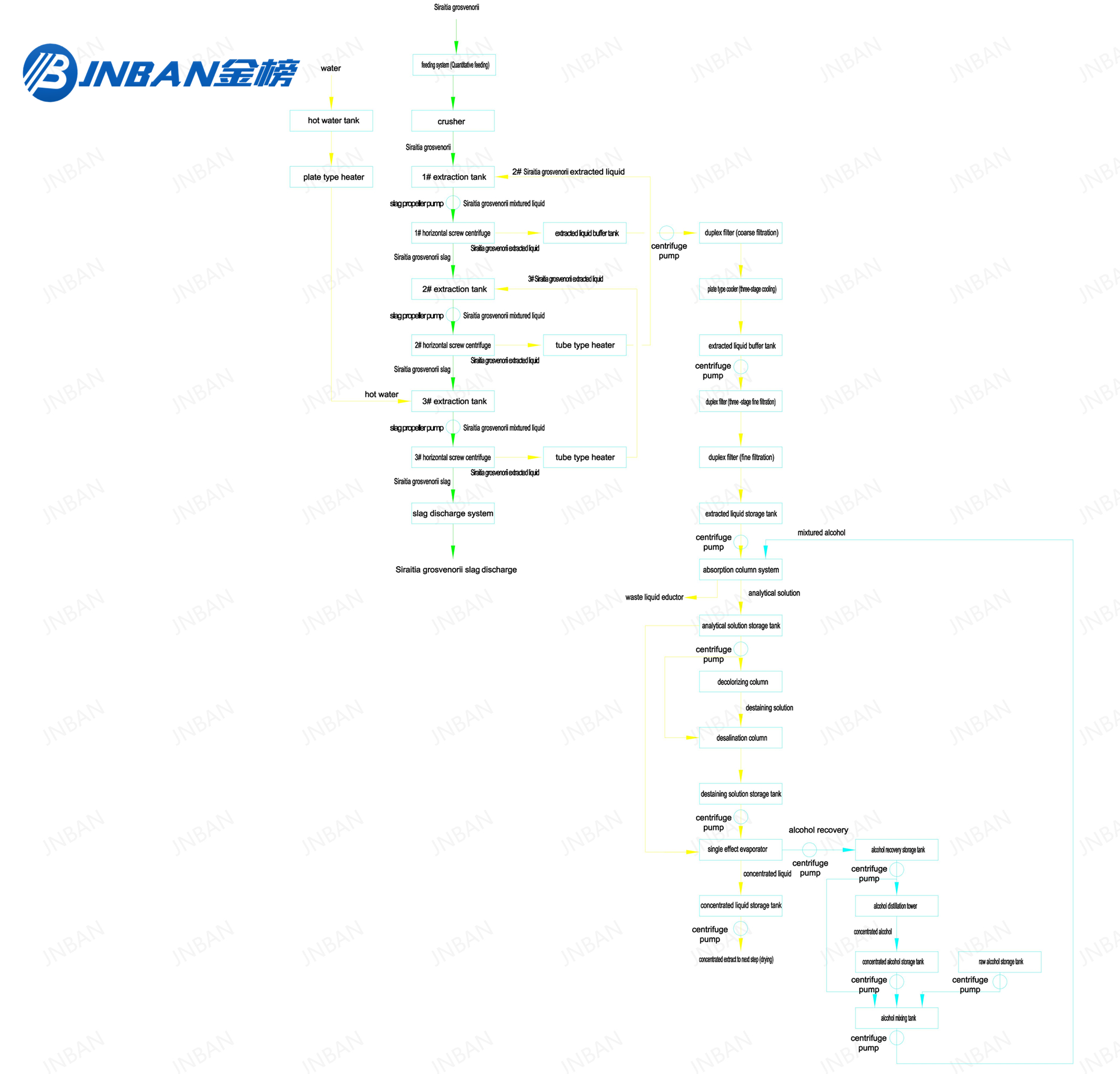

Flow chart

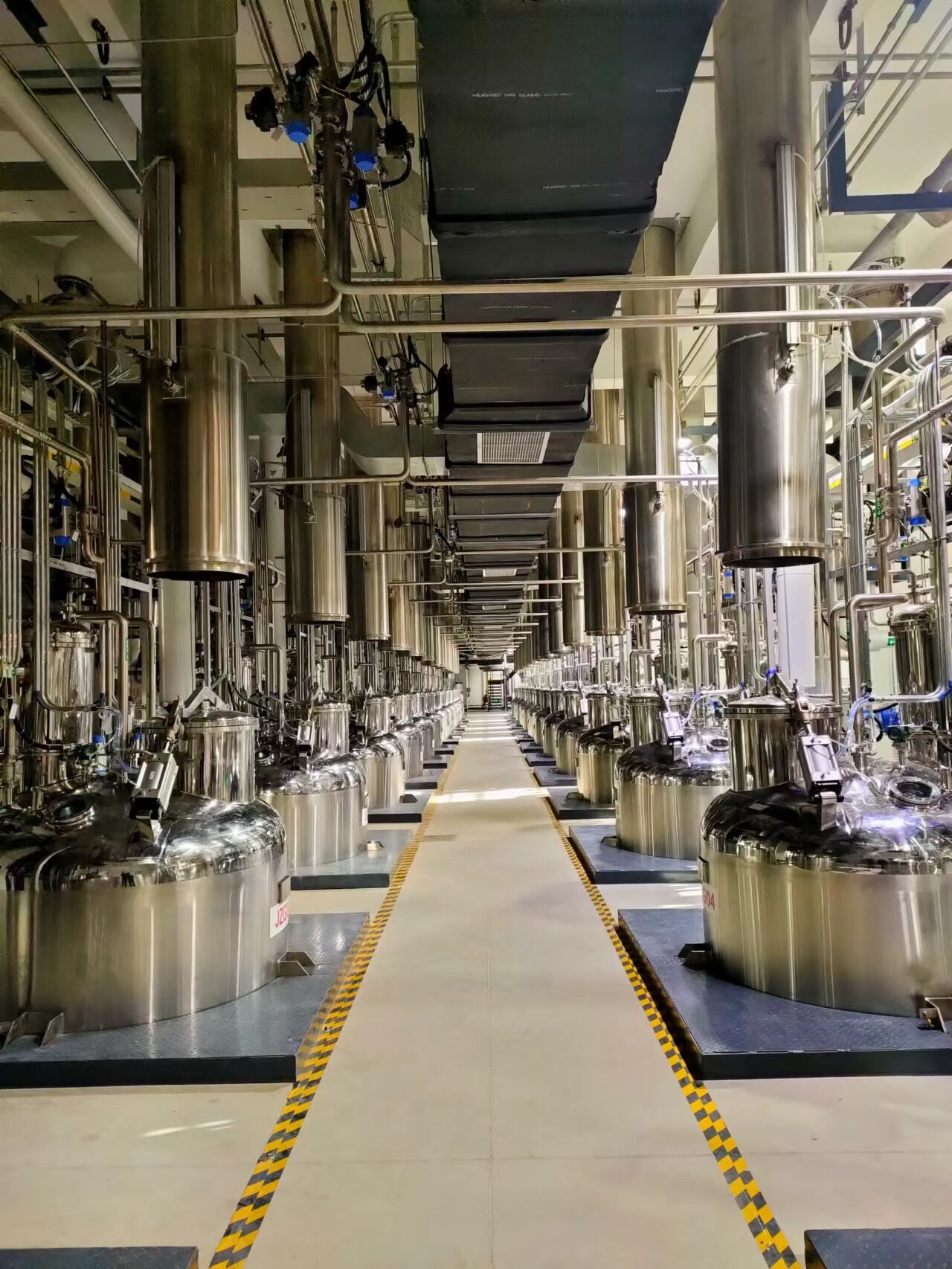

Process Equipment Picture

1. Extraction tank(Stirred):

The dynamic extraction tank can be used for atmospheric pressure, micro pressure, water decoction, warm imrnersion and cold immersion conditions in herbal plant, food and chemical industries. The equipment is equipped with a stirring device to make the material extraction sufficient and increase the extraction rate.

2. Concentrator:

The produdt s mainly adapted to the concentrated producton processiof traditional herbal plant health care products. natural seasonings food additves food. chemcal industry and other industries.H can prouide different proportons of extracts with different dryinig production miethods t has advantages of wide application range. easy operanion and low maintenance rate.

3. Cooling sedimentation tank:

It is applied to the freeze-precipitation of herbal plant, oral liquid, food health products, etc, freezing or normal temperature precipitation of suspension, solid-liquid phase separation, and separation of wax and lipid substances.

4. Molecular (wiped film) distillation:

Is the best thermal separation machine for heat-sensitive material because it is the gentlest type, causing the least amount of thermal degradation of product. It is a process of separation, purification and concentration of natural products, complex and thermally sensitive molecules. JNBAN molecular distillation units are wildly used for purification of oils, such as cannabis/hemp oil, garlic oil, cod liver oil in chemical and pharmaceutical industries. The whole molecular distillation system includes supporting chillers, heaters, vacuum pumps and all accessories.

Working Principle:

The materials are transported from the feed tank to the jacketed main evaporator. The main evaporator is continuously heated. The built-in scraper evenly scrapes the materials into a layer of flowing liquid film for instant evaporation. The light component materials begin to vaporize and adsorb on the built-in condensing coil, flow into the receiving bottle along the outer wall of the condensing pipe, and the heavy component materials flow into the receiving bottle along the inner wall of the main evaporator.

5. Preparation of liquid phase system (HPLC):

Industrial preparation liquid phase system is characterized by high efficiency, rapidity, high degree of automation, explosion-proof, etc. It is widely used in the separation and purification of pharmaceutical intermediates, biomedicine, synthetic drugs, natural products, fine chemicals, food additives and other fields. Industrial preparation of liquid phase systems can effectively improve production efficiency, improve automation, and improve product purity and yield.

6. Solvent rectification column:

The rectification column is a tower gas-liquid contact device for rectification. Using the characteristics of different volatility of each component in the mixture, the light component (low boiler) in the liquid phase is transferred to the gas phase, and the heavy component (high boiler) in the gas phase is transferred to the liquid phase, thereby achieving the purpose of separation. The equipment is widely used in solvent recovery in plant extraction, Chinese medicine, food, and chemical industries.

7. Belt dryer:

The belt dryer is suitable for continuous drying of raw materials, semi-finished products and finished products such as roots, stems and leaves. It can also be used for continuous drying of aquatic products and other agricultural and sideline products and crops. It is especially suitable for materials with high water content and high heat sensitivity.
