JH Alcohol Recycle Tower

Product features and description

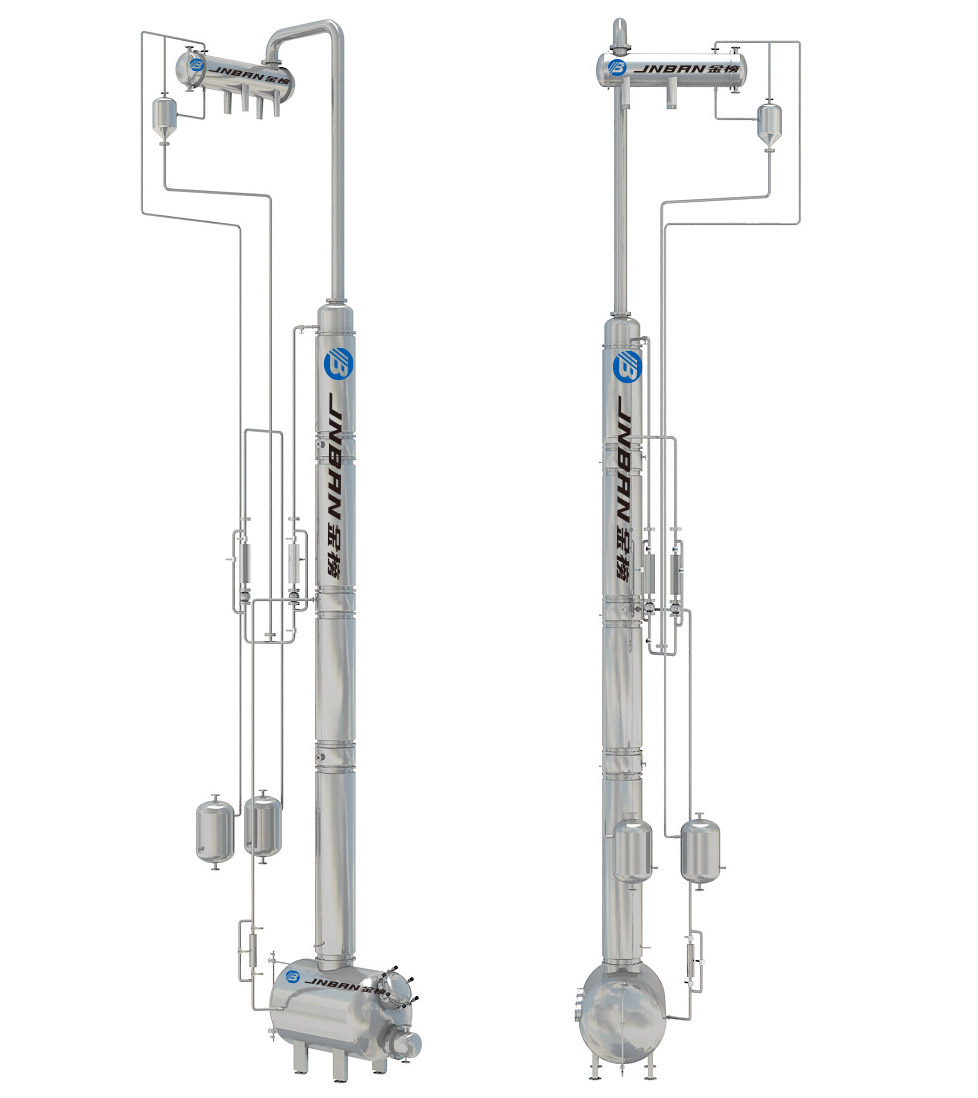

The alcohol recovery tower consists of six parts: tower kettle, tower body, condenser, cooler, buffer tank and high-level storage tank. It is suitable for the recovery of dilute alcohol in pharmaceutical, food, light industry, chemical industry, etc. Some of them are made of OCr18Ni9 stainless steel, which has good corrosion resistance and energy saving, environmental protection...

PRODUCTS DETAIL



Product features and description

The alcohol recovery tower consists of six parts: tower kettle, tower body, condenser, cooler, buffer tank and high-level storage tank. It is suitable for the recovery of dilute alcohol in pharmaceutical, food, light industry, chemical industry, etc. Some of them are made of OCr18Ni9 stainless steel, which has good corrosion resistance and energy saving, environmental protection, lower production cost and improved efficiency. The device can distill the dilute alcohol of 30 degrees to 50 degrees to 93 degrees to 95 degrees, and the residual liquid discharge has low alcohol content and meets environmental protection requirements. The device uses high-efficiency stainless steel corrugated packing. All parts of the contact materials are made of stainless steel to meet GMP standards.


Technical parameter

Specification/Mode


JH 200


JH 300


JH400


JH 500


JH 600


JH800


Tower volume (L) 640 1220 1450 2300 2500 3200
Tower height 6000 7000 7000 7000 7500 7500
High tank 300 400 650 800 1000 1500
Condensation area 5 9 11 18 25 45
Cooling area 1 1.5 2.2 4 6 8
Heat 3.0 6.0 6.5 10 15 26
Recycling 45-50 90-100 150-160 280-300 420-440 600-620
Recovery

>90

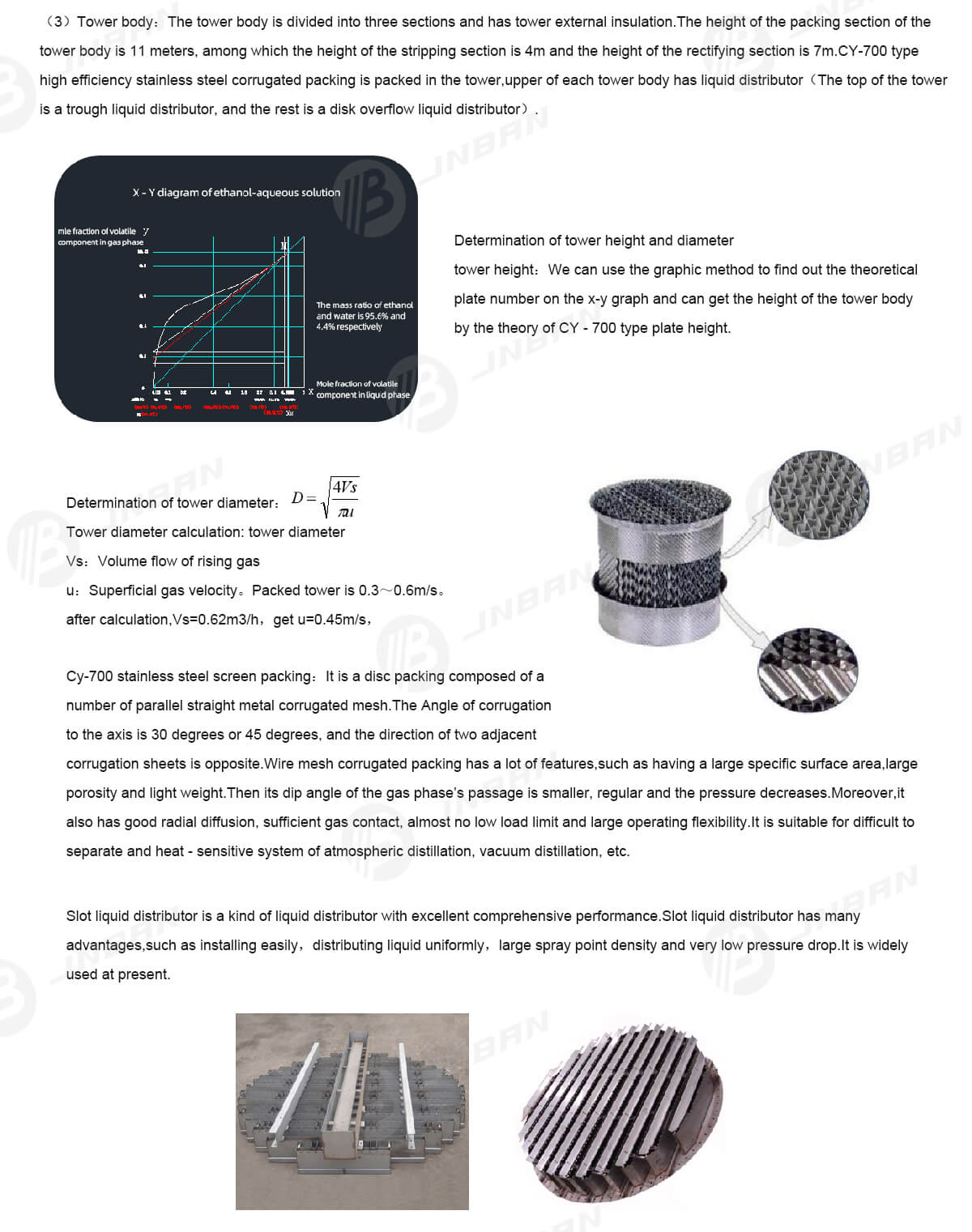

Filler form Ceramic corrugated or stainless steel corrugated packing
Container one type
Dimensions LxWxH
(mm)
2300x700 2600x800 2500x1000 3000x1200 3500x1400 4200x1800
x7300 x7500 x9000 x9000 x9000 X14000
