Distillation Column

JN Multi-functional Alcohol Recycling Contractor

Features

1.Alcohol recovery: The recycling capacity is large, and the vacuum process is used to improve the process of the equipment. The recovery rate can reach 95%, the alcohol consumption rate is less than 5%, and the energy consumption is reduced by 30%. It has the characteristics of small investment and high recycling efficiency...

PRODUCTS DETAIL

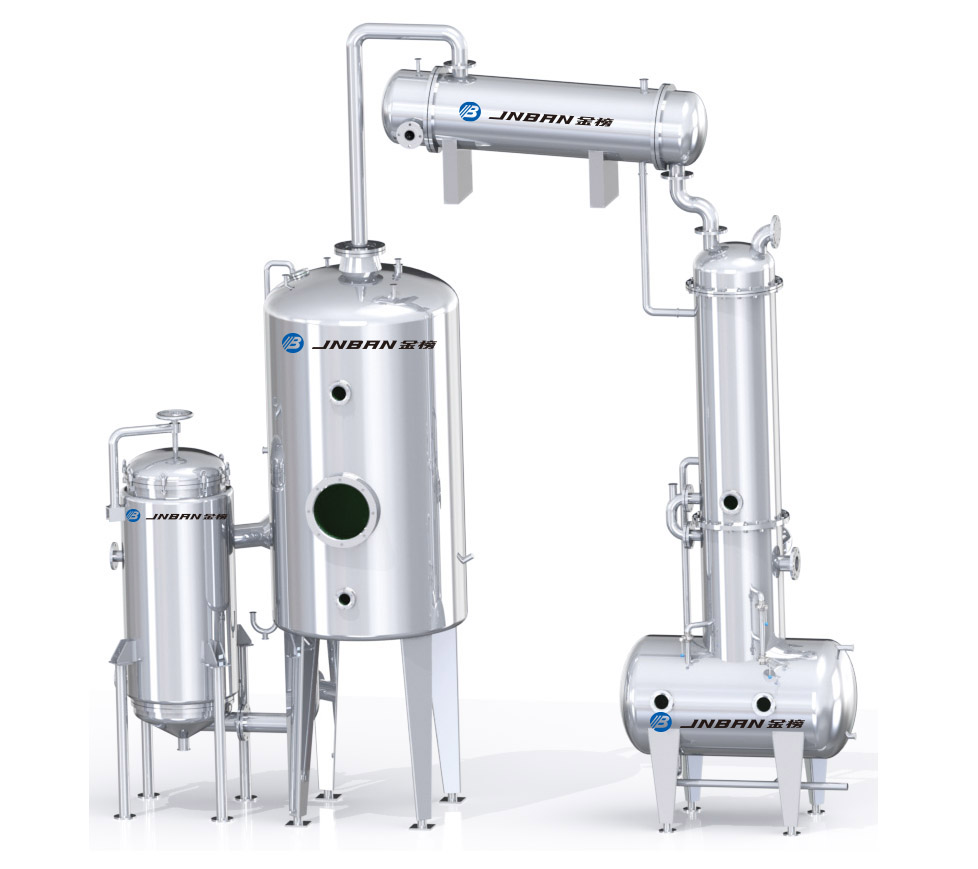

JN Multi-functional Alcohol Recycling Contractor



Features

1.Alcohol recovery: The recycling capacity is large, and the vacuum process is used to improve the process of the equipment. The recovery rate can reach 95%, the alcohol consumption rate is less than 5%, and the energy consumption is reduced by 30%. It has the characteristics of small investment and high recycling efficiency.
2.Concentrated liquid material: the use of external circulation and vacuum negative pressure evaporation method, evaporation speed, high concentration (1.3-1.4); simple operation, small footprint, beautiful appearance, heater, evaporator, insulation complete factory The thermal insulation outer layer is made of stainless steel sheet to form a protective layer, which meets the requirements of GMP standards.


Technical parameter

Specification/Model


1-1500


JN-1000


JN-1500


Evaporation (Kg/h)50010001500
Recycling alcohol (Kg/h)200350500
Recovery concentration85 Calcohol degree
Use pressure (Mpa)0.03-0.09
Evaporation temperature (°C)40-85
Vacuum degree620mmHg
Concentration1.2-1.4
Dimensions(mm)(L)200022002500
(w)100012001300
(H)300033003500

Cooperation with the customer

Company Profile

JNBAN vacuum belt dryers have been included in the“ Eleventh Five-Year National Science and Technology Support Program, Zhejiang Science and Technology Department Major Science and Technology Public Relations Project and Zhejiang Province” Major Science and Technology Special (Priority Theme) Social Development Project. There are 4 papers and 6 patent applications accepted, including 4 invention patents, 2 special authorizations, and 10 practical patents. They won the third prize of Zhejiang Science and Technology Progress Award and the first set of products in Zhejiang Province.……

Pre-sale and after-sale service commitment

Technical service plan within warranty period

Wenzhou Jinbang Light Industry Machinery Co., Ltd. is a high-tech enterprise integrating R & D, manufacturing and sales. Professional in the production and sales of pharmaceutical, bioengineering machinery and equipment professional enterprises. The company mainly specializes in consulting, scheme design and manufacturing, budget, on-site installation and after-sale maintenance of traditional Chinese medicine extraction equipment, concentration equipment, separation and purification equipment, alcohol recovery equipment and drying equipment.……
