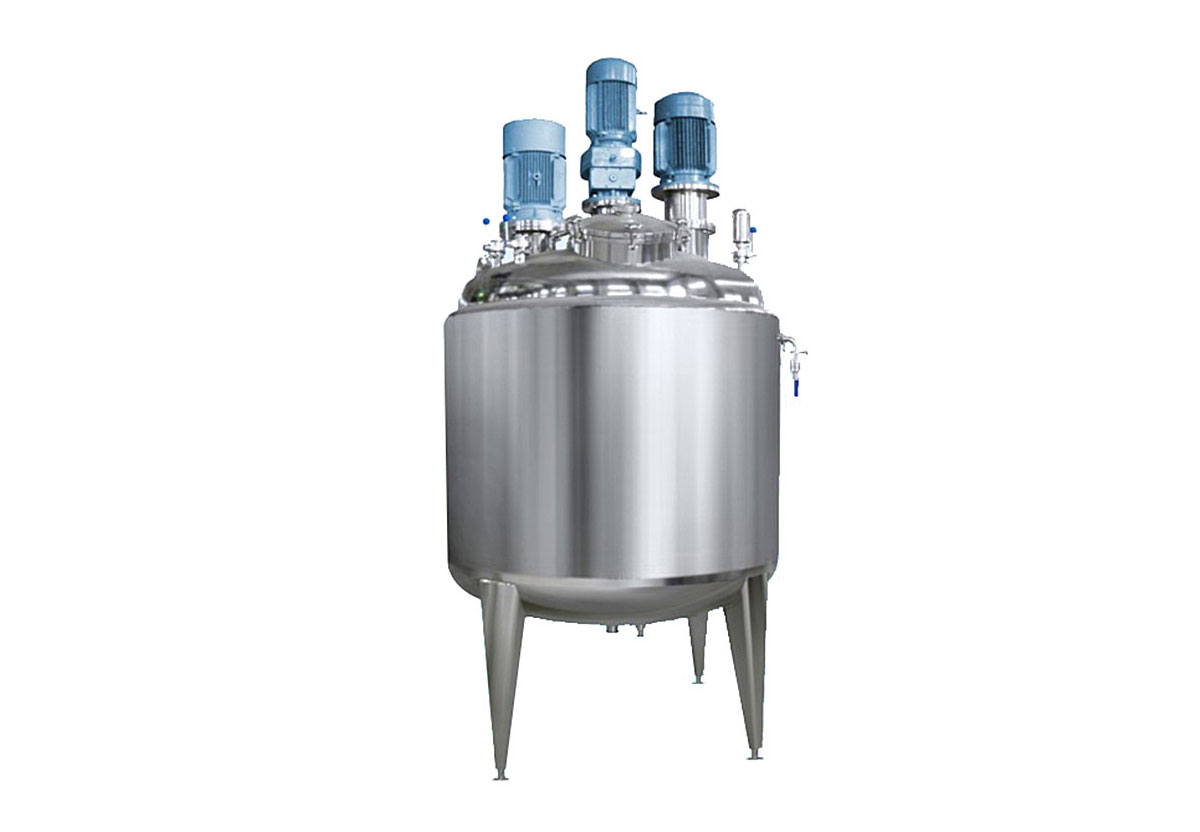

stainless steel heating mixing tank

Product features and description

1.This series of containers has heating and heat preservation functions, and is manufactured, tested and accepted according to the Technical Conditions of Steel Welding Containers.
2.The volume is available in various sizes from 100L to 7000L, and can be designed and processed according to the actual needs of customers...

PRODUCTS DETAIL



Product features and description

1.Stainless steel mixing tank with agitator has heating and heat preservation functions, and is manufactured, tested and accepted according to the Technical Conditions of Steel Welding Containers.
2.Stainless steel mixing vessels volume is available in various sizes from 100L to 20000L, and can be designed and processed according to the actual needs of customers.
3.The sealing of the mixing shaft adopts imported sanitary mechanical seal. The reducer adopts the world famous brand Germany Flander or SEW, and the stirring speed is 36-53/rpm. Variable frequency governor control
4.The interface adopts the international standard ISO standard quick-loading chuck type, and the inner tank adopts imported 316L or 304.
5.Stainless steel blending tank has a liquid level gauge (contactless ultrasonic, static pressure transmission or glass tube type), air breathing apparatus, sterilization steam port, thermometer (digital display or dial type), CIP universal can washer, lamp Hole mirror, several inlet and outlet, manhole.

Mixing Tank Characteristic

● Internal shape: vertical drum shape (inner cylinder is in contact with liquid medicine)
● Inner material:316L(imported from Japan)
● Outer material: 304 mirror board or matt plate
● Material: Pearl cotton (high temperature resistance, anti-aging)
● Working pressure: atmospheric pressure
● Sterilization pressure:0.15-0.3MPa
● Inner finish: 0.28-0.45μm
● Heating coil:304
● Outer temperature: ≤ 10℃
● Working temperature:60℃ -100℃
● Sterilization temperature:121℃ -132℃

Blending vessel Configuration

1. Speed reducer

2. Fold the microporous membrane air filter (filter out ≥ 45μm bacteria);

3. Leakproof device (up to 100%);

4. Level gauge interface (static pressure sensing, ultrasonic, glass tube positioning for selection);

5. Thermometer interface (temperature sensor);

6. Exhaust and safety valve interface (with respirator with sterile filtration);

7. Steam sterilization filtration sterile vent;

8. Clean the ball (360 degree rotation under low pressure);

9. Import and export of liquid medicine (fast-loading type);

10. Elliptical manhole;

11. Sight glass;

12. Light hole

Mixing tank function

The mixing tank can stir, mix, blend the material and so on. It is composed of a stirrer, a support, a transmission device, a shaft sealing device, etc., and a heating device or a cooling device can also be configured according to the process requirements. Materials such as mixing tank, mixing tank lid, agitator, shaft seal, etc. can be made of carbon steel or stainless steel according to different process requirements. A transmission device (motor or reducer) is arranged on the upper part of the mixing tank cover, and the agitator in the stirring tank is driven by the transmission shaft. Due to different user production process requirements, the agitator can be configured in various forms such as slurry, anchor,
frame, and spiral.
The tank is made of SUS304 or 316L stainless steel. The tank is equipped with automatic spray cleaning head and microporous filter 0.2μm respirator to ensure the production process meets GMP quality standards. The system configuration can be designed according to the user’s production requirements. This series of containers is suitable for the pharmaceutical industry and meet the GMP standards.

Product description

Mixing tanks come in various sizes and can be used in a wide range of industries.Our mixing tanks start as small as 50 liter but can go up to 10.000 liter or even bigger.
For processes such as mixing, blending, keeping it homogenious, an efficient agitator or a combination of agitators is necessary. Let us know what you would like to achieve, and we will collaborate with you in order to arrive at the most efficient solution.

Component details

customized to your specifications and manufactured according to the following criteria:

  • Size and geometry
  • Material viscosity
  • Pressure requirements
  • 100% sanitary interior welds
  • Ease of cleaning (CIP) for fast and efficient cleaning operations
  • Mix impeller size and quantity
  • Mix with a set speed or variable speed according to your requirements
  • Mix with impeller motion in one direction or agitating according to your requirements

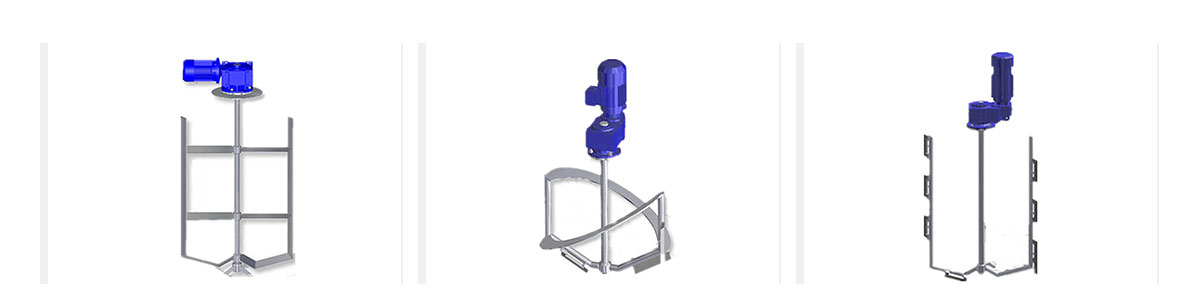

Gate agitator

Anchor agitator

Scraping agitator

Propeller agitator

Dispersing disk

High shear mixer

Agitator

The mixing tank comes with an efficient agitator and a built-in flow breaker.

Wheels

The mixing tank comes equipped with wheels , making it easy to get in position.

Folding Cover

The lid of the mixing tank folds outwards making filling very easy.

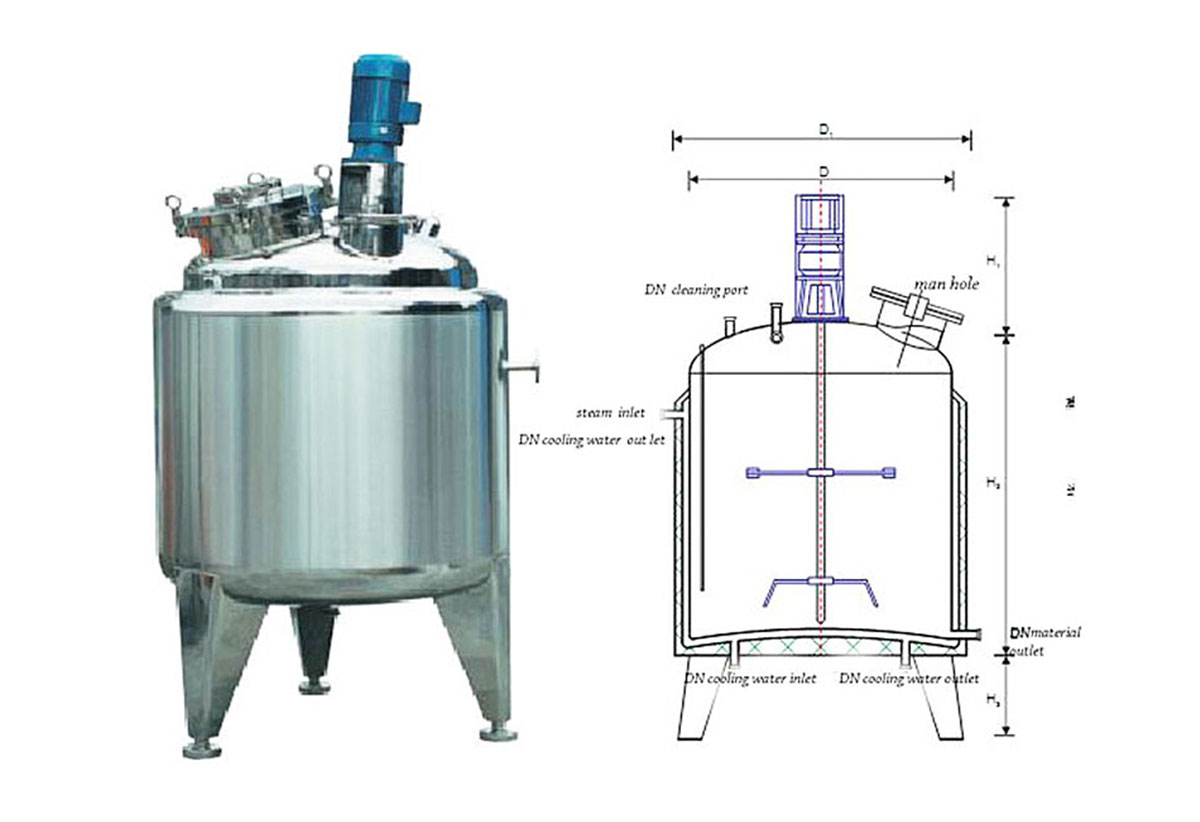

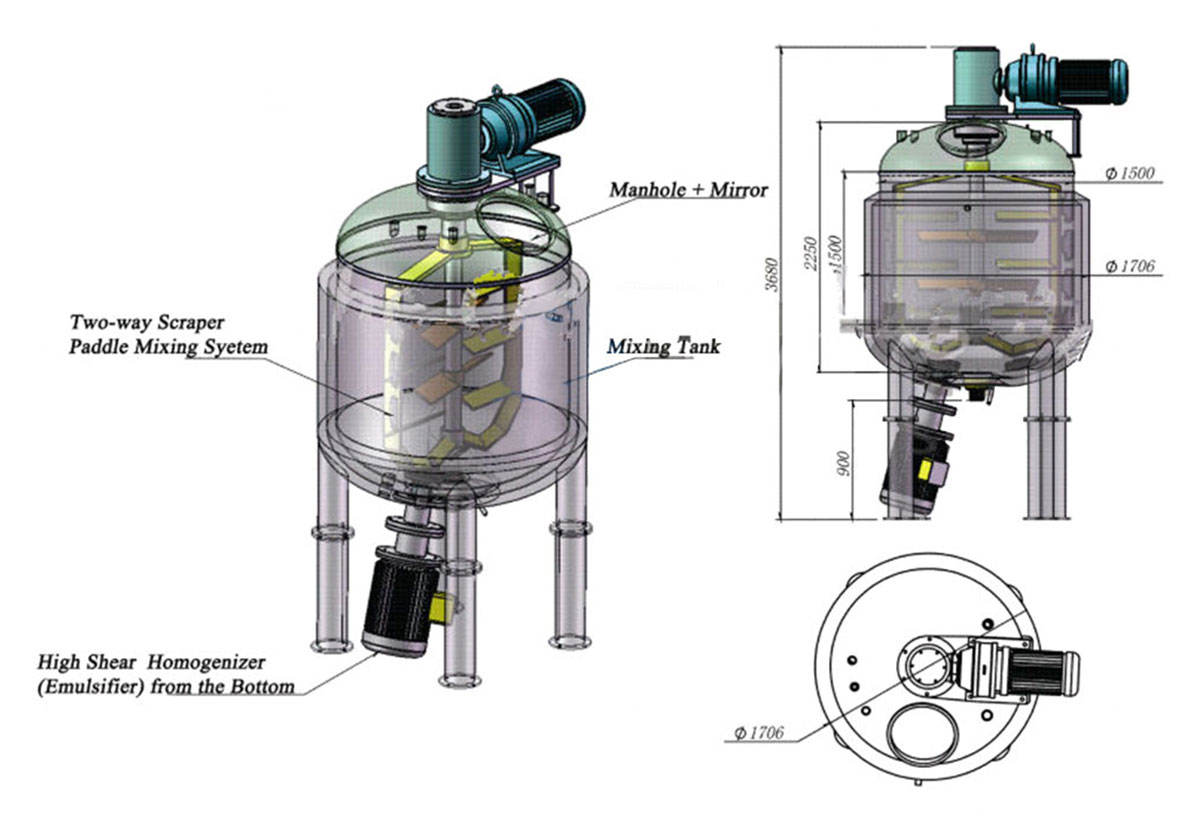

Structural drawing display

Manufacturing liquid products often requires mixing ingredients and then storing them. Whether your company is in the cosmetic, pharmaceutical, chemical, or food and beverage industry, there are various regulations you must meet. Our mixing and storage vessels are designed with your industry in mind. To best serve our customers, we’ve designed top-notch mixing tanks, storage tanks, flange-top mixing tanks, and cosmetic mixing tanks. Each of these tanks feature high-quality materials for optimal durability, reliability, and safety.

Product parameters

Model Tank size (mm) Frame power (kw) Frame speed (rpm) Disperserp ower (kw) Disperser Speed (rpm) Screw power (kw) Screw speed (rpm) Emulsifier power (kw) Emulsfier speed (rpm)
SJBF-500 φ950*800 3-5.5 0-75 11-18.5 0-1450 4-7.5 0-200 7.5-11 0-1500
SJBF-1000 φ1200*1000 5.5-11 0-58 18.5-30 0-1450 7.5-15 0-180 15-22 0-1500
SJBF-1500 φ1350*1100 7.5-15 0-58 22-37 0-1450 7.5-15 0-180 22-30 0-1500
SJBF-2000 φ1450*1300 15-18.5 0-45 30-45 0-1450 11-18.5 0-160 30-37 0-1500
SJBF-3000 φ1600*1600 18.5-22 0-35 45-55 0-1450 15-22 0-140 37-45 0-1500
SJBF-5000 φ1900*1900 18.5-22 0-25 55-90 0-950 22-30 0-120 37-45 0-1500
SJBF-6000 φ1900*1900 22-30 0-24 75-110 0-950 30-37 0-120
SJBF-8000 φ1900*1900 22-30 0-17 110-160 0-950 37-45 0-100
SJBF-10000 φ2400*2400 30-37 0-17 160 0-950 37-45 0-80

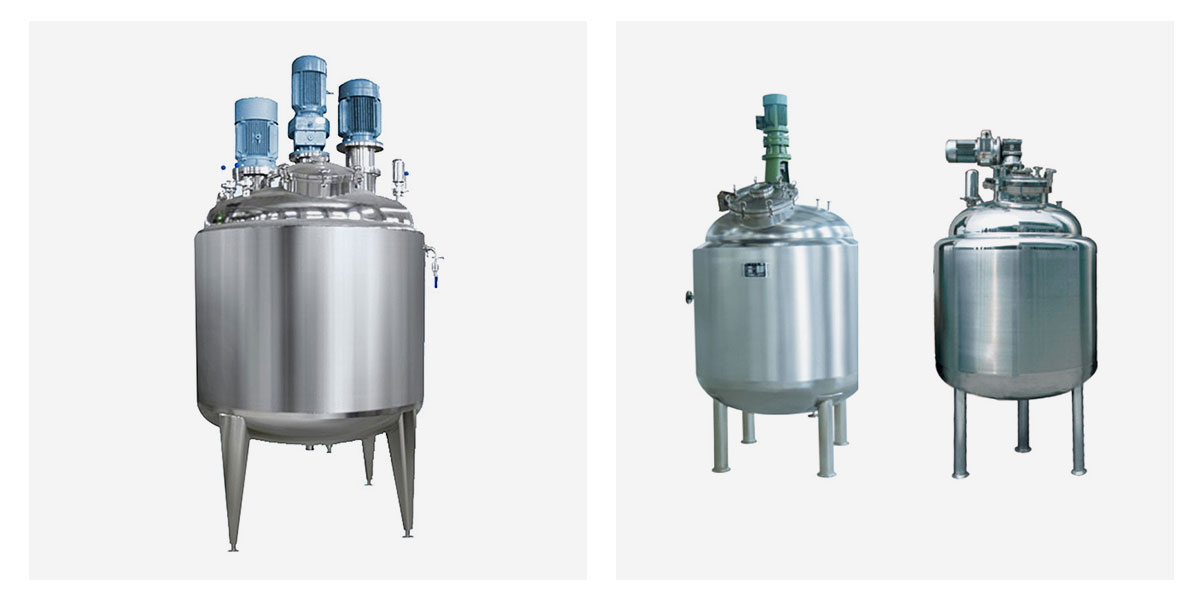

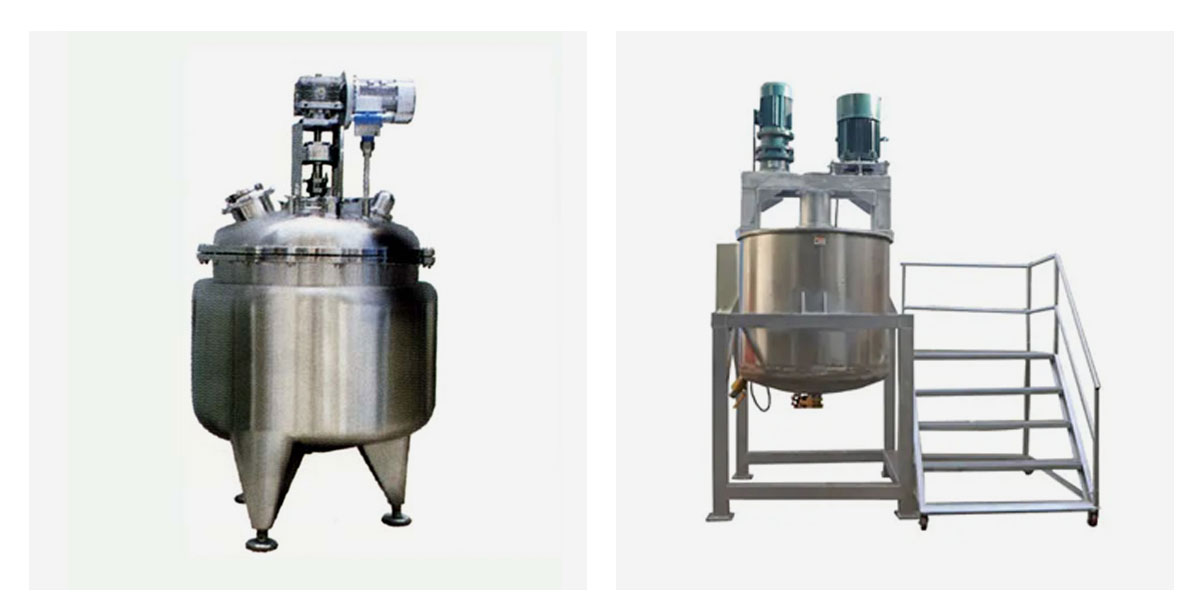

One mixing shaft


Two mixing shafts


Three mixing shafts


Magnetic stirrer
