ZN Vacuum Decompression Concentrate Tank

Product features and description

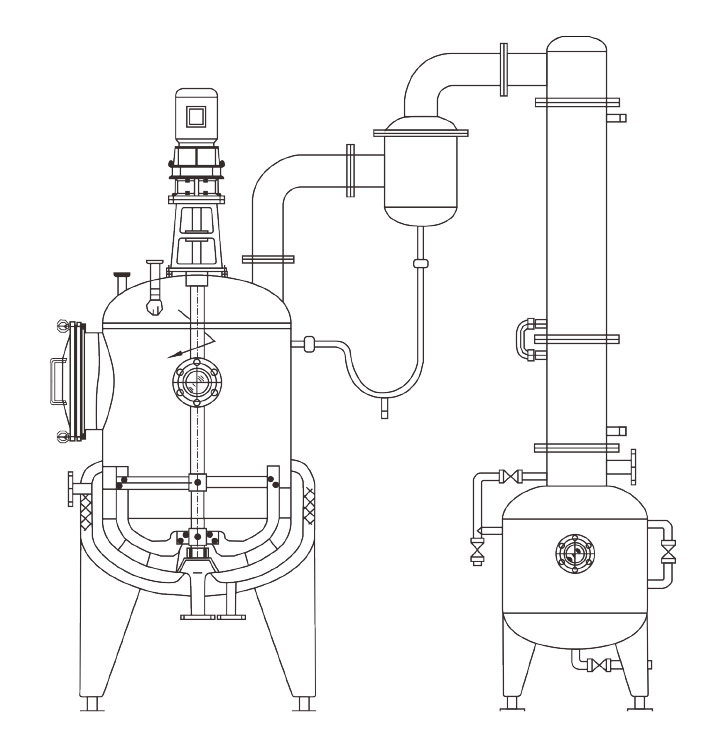

The equipment mainly comprises five parts: a concentration tank, a condenser, a vapor-liquid separator, a cooler and a liquid receiving tank. The concentration tank is a jacket structure, the condenser is a tubular type, and the cooler is a coil type structure. This equipment is suitable for the concentration of feed liquids in the pharmaceutical, food, chemical and other industries, and can be used as alcohol recovery and simple reflux extraction. The equipment and material contact parts are made of stainless steel, have good corrosion resistance and meet GMP standards.

PRODUCTS DETAIL



Product features and description

The equipment mainly comprises five parts: a concentration tank, a condenser, a vapor-liquid separator, a cooler and a liquid receiving tank. The concentration tank is a jacket structure, the condenser is a tubular type, and the cooler is a coil type structure. This equipment is suitable for the concentration of feed liquids in the pharmaceutical, food, chemical and other industries, and can be used as alcohol recovery and simple reflux extraction. The equipment and material contact parts are made of stainless steel, have good corrosion resistance and meet GMP standards.


Technical parameter

Specification/Model ZN-50 ZN-100 ZN-200 ZN-300 ZN-500 ZN-700 ZN-1000
Volume (L) 50 100 200 BOO 500 700 1000
Receiving tank (L) 35 45 60 76 100 125 165
Jacket pressure (Mpa) 0.09 0.09 0.09 0.09 0.09 0.09 0.09
Vacuum degree (mmHg) 600-700 600-700 600-700 600-700 600-700 600-700 600-700
Heating area (m²) 0.25 0.59 0.8 1.1 1.45 1.8 2.2
Condensation area (m²) 1.2 1.7 2.4 3.0 3.3 3.6 4.1
Cooling area (m²) 0.29 0.35 0.45 0.6 0.7 0.85 1.05
Dimensions (mm) (L) 1200 1350 1700 1700 2100 2400 2390
(W) 600 750 800 1000 1200 1300 1300
(H) 2200 2200 2700 3400 3400 3400 3720
