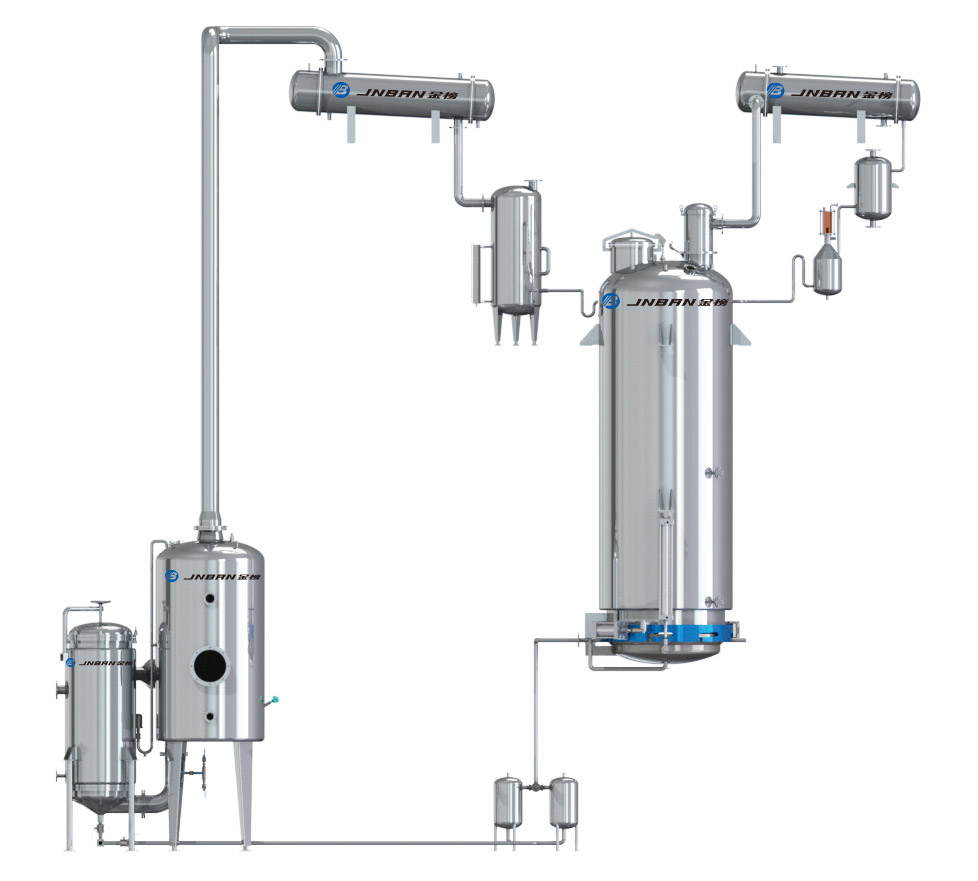

Hot Reflux Distillation Concentrator

Characteristic of hot reflux distillation concentrator

1.The concentrated heating area is increased, the concentration heat efficiency is high, the concentration time is short, the scale is not easy to be scaled, and the cleaning is convenient. The unit has an intermediate storage tank of the extract liquid, and the extract liquid is stored in the storage tank at the lower part of the evaporator, and the extraction tank can be used for slag discharge and The feeding operation of the next batch extraction, during which the concentrator completes the concentration of the extract and prepares for the next batch of extraction...

PRODUCTS DETAIL



Characteristic of hot reflux distillation concentrator

1.The concentrated heating area is increased, the concentration heat efficiency is high, the concentration time is short, the scale is not easy to be scaled, and the cleaning is convenient. The unit has an intermediate storage tank of the extract liquid, and the extract liquid is stored in the storage tank at the lower part of the evaporator, and the extraction tank can be used for slag discharge and The feeding operation of the next batch extraction, during which the concentrator completes the concentration of the extract and prepares for the next batch of extraction;
2.The extraction yield is increased by more than 8%, the active ingredient is high, the extraction and concentration are completed in the same closed equipment, and the loss is small; due to the low temperature extraction, the quality of the concentrated extract is high and the color and fragrance are pure;
3.The large condensation area is conducive to the condensation and recovery of the solvent, the solvent loss is small, and the recovery rate is over 95%;
4.The large condensation area is conducive to the condensation and recovery of the solvent, the solvent loss is small, and the recovery rate is over 95%;
5.Multi-purpose machine, compact structure, small floor space, less operators, low investment cost and low production cost;.
6.Fully enclosed pipeline production reduces environmental pollution and meets GMP requirements..

Technical parameter

Specification/Model RCN-500 RCN-1000 RCN-200 RCN-3000 RCN-6000
Extraction tank 500 1000 2000 3500 6000
Volume (kg) 100-200 200-400 300-700 500-1000 900-2000
Time (H) 3-6 4-6 5-7 5-8 7-9
Concentration ratio 1.2-1-35 1.2-1.35 1.2-1.35 1.2-1.35 1.2-1.35
Dimensions (M) 2.5x15x5.0 3.0x2.0x6.0 3.0x2.0x8.0 40x2.8x9.5 4.5x3.5x10.0
